| Place of Origin: | China |
| Brand Name: | Prochema |
| Certification: | ISO |
| Minimum Order Quantity: | 50kgs |
|---|---|
| Price: | negotiate |
| Packaging Details: | plastic bag and carton |
| Delivery Time: | two weeks |
| Payment Terms: | T/T |
| Supply Ability: | 5 ton per month |
| Material: | Polyimide Film | Type: | Insulation Film |
|---|

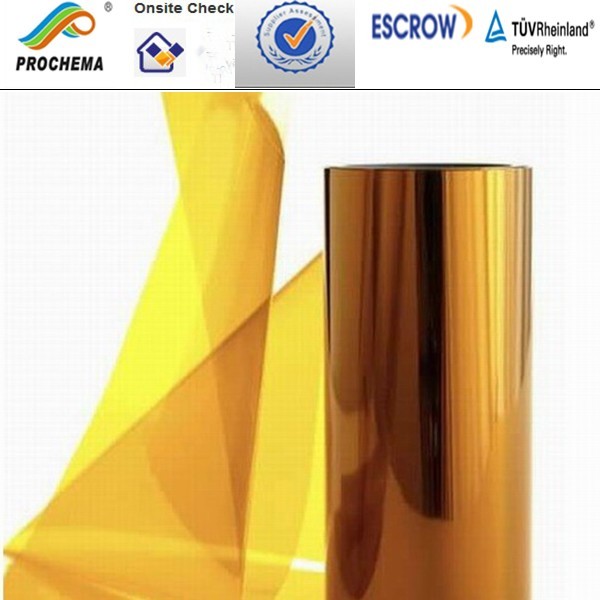

PI-FEP film , Polyimide FEP film, Polyimide coated FEP film
FH. FHF (Polyimide-FEP ) Composite Film
1.Character
The FH,FHF of our products are made by the method of dipping and coating FR463 emulsified solution on Polyimide casting film, then sintered with high temperature. It has the excellent characters of Polyimide in Electric insulation ,resistance to high temperature ,radiation and corrosion as well as seal under high temperature etc.
2.Technical data
|
Properties |
Unit |
Value |
|
Tensile strength |
Mpa |
≧110 |
|
Elongation |
% |
≧40 |
|
Stripping Strength |
N/25mm |
≧6 |
|
Breakdown strength |
Kv/mm |
≧120 |
|
Dielectric Constant at 50Hz |
_ |
≦4.0 |
|
Loss Tangent at 50Hz |
-- |
≦0.004 |
3.Application
Extensively used for insulation layers of wire,cable and electromagnetic line as well as insulation for various H-grade motors.
Remarks:
FH film : Single-side . FHF film: Double-side
Thickness :0.035--0.075mm
F layers: 0.005--0.0125mm
The Whole thickness :≤10%
Width : 10--550mm.
Width can be done as buyer’s need.
Packing:
Internal core Dia: 40mm 50mm 76mm
Carton for export
The Shelf Life is 1 year counted from the date of delivery.
Specifications
1.1mil FCR PI film
2.Stable properties at low price
3.Five production lines of polyimide film
4.Guaranteed by ISO9001
Excellent properties:
1.great corona-resistant;
2. electric and mechanical properties;
3. heat-resistance, radiation-resistance;
4.chemical stability and non-flammability;
5.high oil-proof, water-proof and high-temperature self-adhesive seal.
Application:
1 the insulation layer of the flat coil wire of the deep well submersible motor;
2 cable copper winding and electromagnetic wire;
3 the lapped wire insulation of the electrical equipment motor.
4 wind power generator, variable frequency motor, traction motor and electrical rotating machines;
5 High-voltage transformer;
6 .Magnetic wire wrap;
7 .Super high-voltage cable insulation.
Technical Index:
|
No. |
Item Name |
Unit |
Standard |
|
1 |
Tensile Strength |
MPa |
78 |
|
2 |
Elongation Ratio |
% |
30 |
|
3 |
Peel Force |
N/ 2.5mm |
|
|
Tape-Tape |
4.0 |
||
|
Tape-Copper |
4.0 |
||
|
4 |
Dielectric Strength |
MV/m |
90 |
|
5 |
Surface Resistivity |
Ω |
1.0 × 1012 |
|
6 |
Volume Resistivity |
Ω . m |
1.0 × 1013 |
|
7 |
Dielectric Constant 50Hz |
|
2 — 3 |
|
8 |
Dielectric Loss Tangent 50Hz |
|
0.01 |
When you inquiry , please kindly let us know the following information :
1.What thickness and width do you need ?
2.What will you use it to do ?
3.How many do you plan to order ?
4.Your detailed company information
