FEP rod, FEP welding rod

FEP rod, FEP welding rod

FEP rod, FEP welding rod

Product Details:

Place of Origin: China
Brand Name: Prochema
Certification: ISO

Payment & Shipping Terms:

Price: negotiate
Packaging Details: plastic bag and carton
Delivery Time: two weeks
Payment Terms: T/T
Supply Ability: 5 ton per month
Minimum Order Quantity: 100kgs
Contact Now
Detailed Product Description
High Light:

FEP rod

,

FEP Welding rod

,

FEP

FEP rod, FEP welding rod

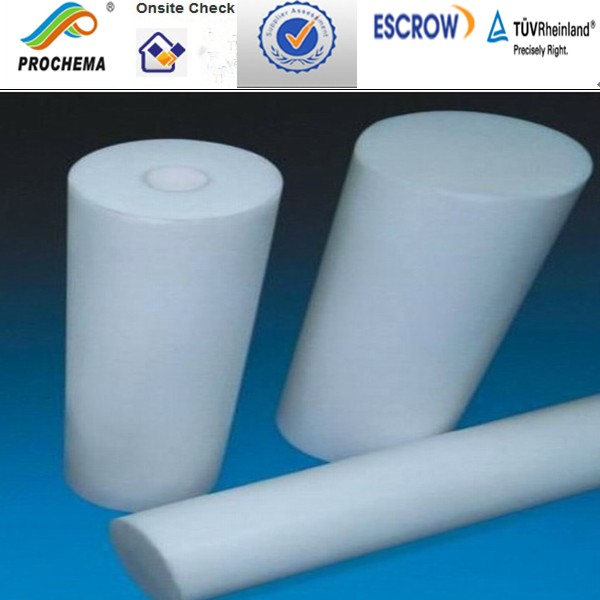

FEP rod is made from FEP resin and prepared by the technology of extrusion and molding. It can be machined into various sealing parts and electric components. It can be used at the temperature range of -80 through +200

application:

1.Petrochemical and chemical processing

2.Electrical applications

3.Semi-Conductor Industry

4.Food, Beverage and Pharmaceutical industries

5.Laboratory applications

Lining Bearing pads, seals, and electrical insulation Lining Bearing pads, seals, and electrical insulation, liner tube, insulator tubing.

It is mainly used to weld kinds of FEP products .

Characteristic

1. High and low temperature preservation

2. -200~200oC high temperature intensity better than F4

3. No-begriming ,and no-stagnant in tube

4. Security and insulation

5. Under 60HZ-60MHZ high and low temperature , permittivity is 2.1

6. If firing, and will still insulate

7. Voltaic are>165 seconds insulation

8. Erode preservation

9. Under high temperature, fluorin and alkali will reaction with PFA, no reaction with other acid.

10. Low water absorption<0.01%

11. No firing in air( oxygen index>95 vol.%)

Properties :

FEP

Items

Properties

Indicators

physical properties

specific gravity(g/cm³)

2.12~2.17

meltingpoint(¡ãC)

207

melt index(g/10min)

5~25

electrical properties

tensile strength(Mpa)

27~29

elongation at break(%)

250~300

rigidity(SH)

D60~70

coefficient of kinetic friction

0.2

mechanical properties

volume resistivity(CM)

>=10 18

insulated breaking voltage(0.2mm)/(mv/m)

20

dielectric constant 1MHz

2.1

dielectric loss angle tangent 1MHz

<=0.003

It is predominantly used in the constchemicalruction/fabrication of semiconductor wafer baskets, aggressive baths/wet benches & custom made inert liquid enclosures.

FEP welding rod include: Dia3 to 5mm round rod ,flat solder strip 2.5x14mm

Specification and usage of FEP rod:

Name

Diameter(mm)

Length(mm)

Application

Molded rod

5-20

200

Anti-corrosion, sealing, antifriction, electric insulating parts

25-100

100-150

FEP rods are compatible to corresponding standard.

Color and sizes can be customiszed . Surface treated can be done (chemical or plasma treated)

Package :

FEP rod, FEP welding rodFEP rod, FEP welding rod

Plastic bag &carton . Customized is acceptable

For quotation,please kindly contact us with below detail information to speed up our service:

1.Diameter

2.usage

3.Color

4.Quantity

Once we get your detail inquiry,we will reply you in 10 hours.
