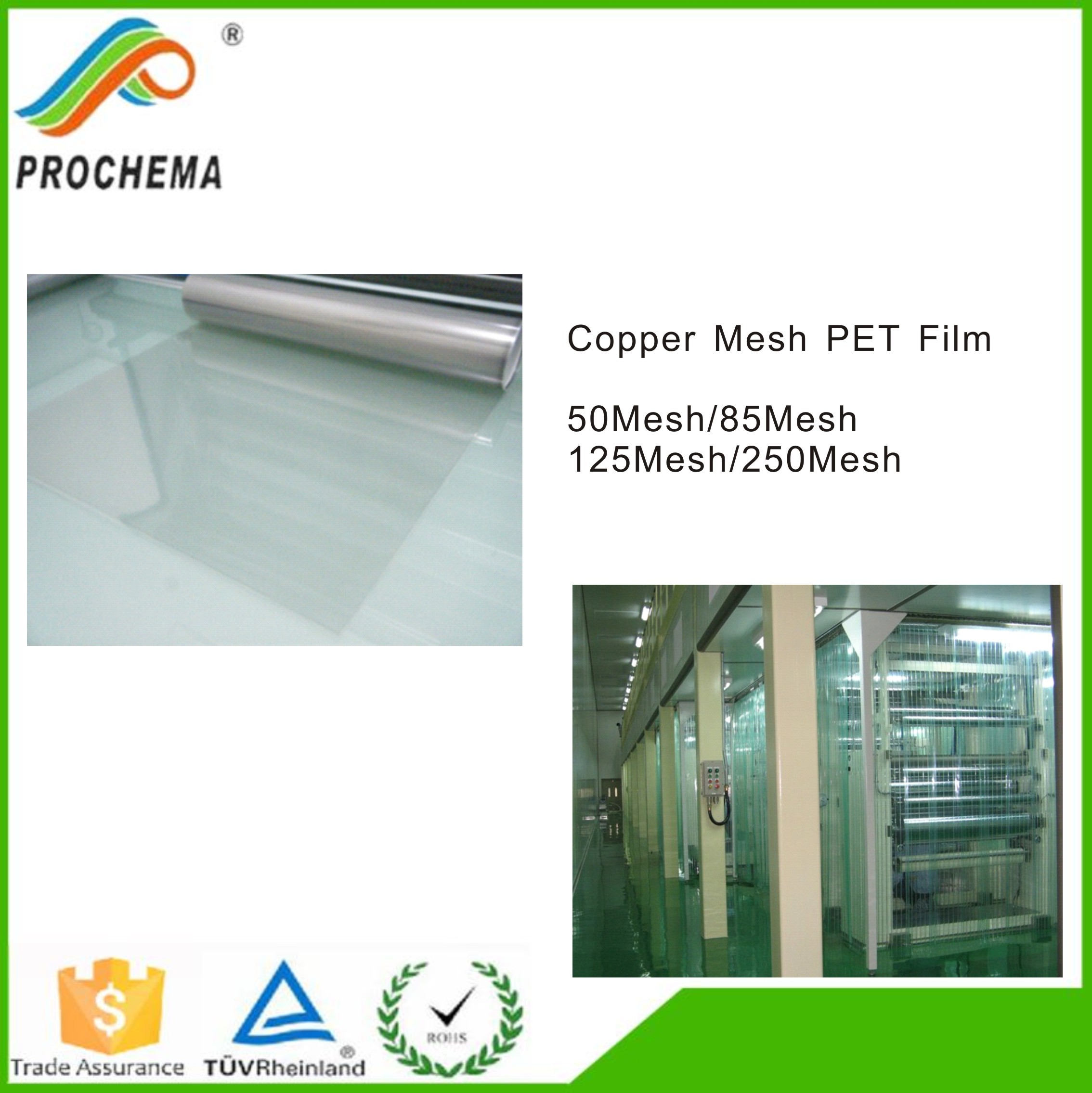

WSM-03 EMI shielding film

WSM-03 EMI shielding film

WSM-03 EMI shielding film

Product Details:

Model Number: WSM-03

Payment & Shipping Terms:

Minimum Order Quantity: 50m
Price: USD135-USD140/sqm
Packaging Details: Carton
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 2000sqm per month
Contact Now
Detailed Product Description
Type: 85Mesh Effective Roll Width: 1430mm
VLT: 78% Resistance: ≤0.5
Mesh Shape: Square 45 Degree Grid

Product Name:Transparent EMI electromagnetic shielding film

Product Model:WSM-03(85Mesh)

Type: Without adhesive

No protective film

Provide by roll, roll width 1500mm, effective roll width 1430mm


item unit performance index detection method remark
Thickness μm 100±5 ASTM D374 Material:PET
Mesh shape   Square 45 degree grid
Mesh width μm 22
Mesh spacing μm 300
Visible Light Transmittance % ≥75 GB/T 2410-2008


(conductive side)

W/□ ≤0.5

Four probe surface

resistance tester

wet-heat resistant property resistance variation % ≤30 65℃,90%,100hours ΔR/R0
Light transmittance change % ≤5 ΔT/T0

Shielding Effectiveness








Storage conditions:

Shelf-life:six months since the date the customer received

Optimum storage temperature:5~25℃,30%~70%RH Humidity,Avoid direct sunlight,low temperature(0 ℃ below),High temperature(40℃ above)High humidity(70%RH above) placed under the environment.
