Place of Origin: | China |
Model Number: | PROX-150HT |
Minimum Order Quantity: | 200m |
---|---|
Price: | USD24/sqm |
Packaging Details: | Strong carton |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 20000sqm per month |
Product: | Ito Film | Roll Width: | 1250mm |
---|---|---|---|
Sheet Resistance: | 150ohm/sq | Thickness: | 0.125mm |
VLT: | 88% | Haze: | <0.6% |
Length: | 200m |

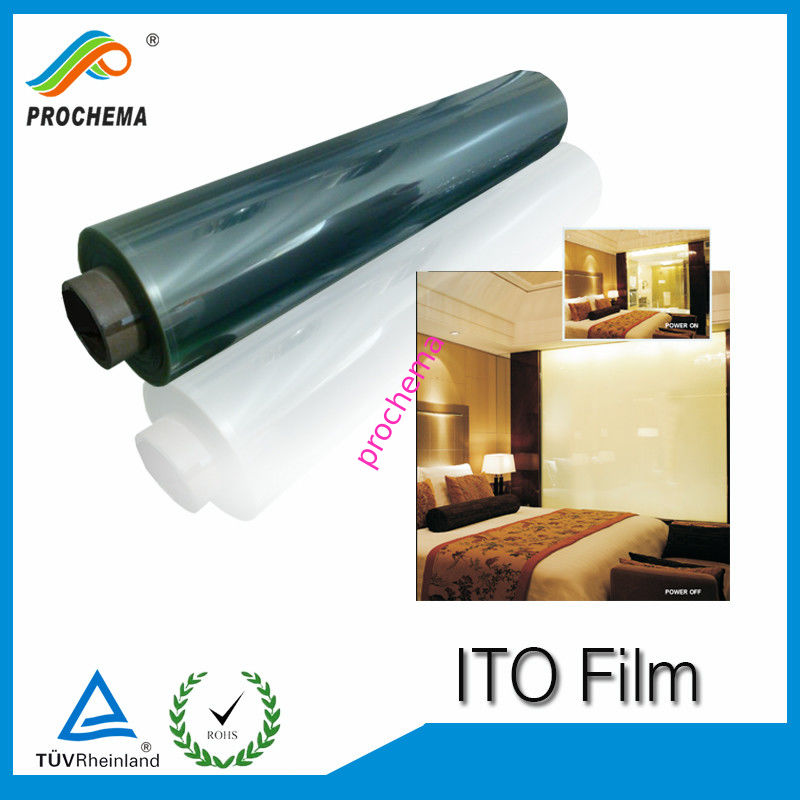

Product Name: ITO PET Film
Product Model:PROX-150HT
Structure: ITO Layer/Optical matching layer/PET substrate/HC Layer
Property |
Standard Value
|
Testing Methord | Detection value |
Judge (A/R)
|
|
Thickness(um) |
125±10
|
Microcalliper
|
126 | A | |
Total Light Transmittance (%) |
After heating | ≧89 |
150℃ 60minutes JIS-K-7105 |
89.11% | A |
Haze % | After heating | 1.0+1.0 |
150℃ 60minutes JIS-K-7105 |
0.58% | A |
Resistance(Ω/□) | After heating | 150+50 |
150℃ 60minutes
Four Probe Resistivity Meter |
148+6 | A |
Hardness | ≥2H | Loading 750g | 2H | A | |
Adhesion | ITO Side | 100/100 | QFH 3M610 tape | 100/100 | A |
H/C side | 100/100 | 100/100 | A | ||
Heat Shrinkage(%)
|
MD≤1.0 TD≤0.8
|
150℃ 60 minutes
|
MD:0.74% TD:0.49%
|
A | |
heating curl value | ≤10 |
150℃ 60 minutes Sample size 356*406mm |
2 | A |
