| Place of Origin: | China |
| Brand Name: | Prochema ITO PET FILM |
| Model Number: | 3-5 Ohm ITO PET FILM |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Price: | 98 |

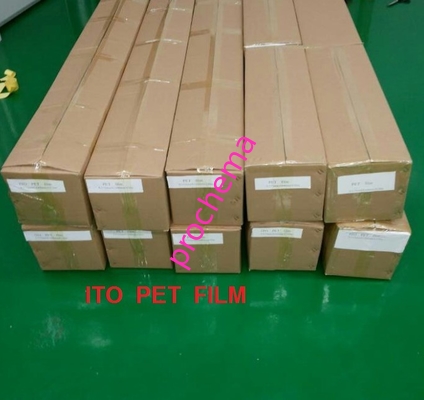

| Packaging Details: | In roll wrapped with foam protection |
| Delivery Time: | 1 week |
| Payment Terms: | T/T in advance |
| Supply Ability: | 2000 sqm/month |
| Usage: | RFID Block On Smart Cooler | Surface: | Low Resistance ITO Sputtered |
|---|---|---|---|
| Haze: | <2% | Base Material: | Optical PET Film |
| Adhesion: | AB Adhesive Easy Stick | EMI Shielding: | >30 DB |
| Vlt: | >76% | Feature: | Super Low Resistance 3.5 Ohm/sq |
The ITO FILM JL-125-3AD is a high-quality conductive film specifically designed for LCD display EMI shielding. With an EMI shielding of over 30 DB, this film provides superior protection against electromagnetic interference, making it an ideal choice for electronic devices.
One of the key features of this conductive film is its super low resistance of 3.5 Ohm/sq. This low resistance ensures efficient and reliable conductivity, making it suitable for a wide range of applications. The film is also equipped with a low resistance ITO sputtered surface, which further enhances its conductivity and durability.
The ITO FILM JL-125-3AD has a thickness of 0.125mm, making it a thin and lightweight option for EMI shielding. Despite its thinness, it boasts a high Vlt of over 76%, ensuring maximum visibility and clarity for LCD displays. This makes it an ideal choice for use in electronic devices that require both EMI shielding and high-quality display performance.
In summary, the ITO FILM JL-125-3AD is a superior conductive film with excellent EMI shielding capabilities and a super low resistance of 3.5 Ohm/sq. Its low resistance ITO sputtered surface and high Vlt of over 76% make it an ideal choice for LCD display EMI shielding. With a thickness of 0.125mm, it is a thin and lightweight option that offers both efficient conductivity and high-quality display performance.
| Product Attributes | Specifications |
|---|---|
| EMI Shielding | >30 DB |
| Model | ITO FILM JL-125-3AD |
| Haze | <2% |
| Feature | Super Low Resistance 3.5 Ohm/sq |
| Usage | RFID Block On Smart Cooler |
| Vlt | >76% |
| Surface | Low Resistance ITO Sputtered |
| Base Material | Optical PET Film |
| Adhesion | AB Adhesive Easy Stick |
| Key Features | Specifications |
|---|---|
| 3-5 ohm ITO PET FILM | Super Low Resistance 3.5 Ohm/sq |
| ITO PET FILM With OCA | Low Resistance ITO Sputtered |
| TCF ITO FILM For RFID Block | RFID Block On Smart Cooler |
| Item | Unit | Test Method | Value | Result | |||
| SN | PET Thickness | um | 125±5 | 126 | |||
| ITO PET | 1 | Total Transmittance | ﹪ | ASTM D1003 | ≥70 | 73 | |
| 2 | Haze | ﹪ | ASTM D1003 | 3±0.5 | 2.5 | ||
| 3 | Sq.Resistance | Ohm/sq | ASTM D991 | 3~5 | 3.5 | ||
| 4 | Resistance Tolerance | ﹪ | ASTM D991 | ≤15 | ≤10 | ||
| 5 | ITO peel strength | B | ASTM D3359 | ≥5B | 5B | ||
| 6 | Heat stablization | MD | ﹪ | ASTM D1204 at 120℃ *30min | ≤1 | ≤0.58 | |
| TD | ﹪ | ≤1.5 | ≤1 | ||||
| 7 | Annealing | R/Ro | % | 60min at 140℃ | 0.8≤R/Ro≤1.2 | 0.8 | |
| EMI | 30M | 100M | 300M | 600M | 900M | 1200M | 1500 |
| 28.6dB | 28dB | 28.5dB | 28dB | 30.5dB | 26.8dB | 30.4dB | |
Prochema ITO PET FILM is a highly versatile and innovative product that is widely used in various industries. It is a type of conductive film that is specifically designed to provide excellent conductivity and durability. This film is widely used in the production of electronic devices and is highly recommended for its excellent performance and reliability.
Prochema ITO PET FILM is specially designed with ITO (indium tin oxide) and OCA (optically clear adhesive) to provide excellent light transmissivity and conductivity. It is widely used in LCD displays to prevent EMI (electromagnetic interference) and ensure clear and crisp images. The 3-5 ohm ITO PET FILM is perfect for applications that require a high level of conductivity and is ideal for use in touch screens, smart devices, and other electronic products.
One of the key features of Prochema ITO PET FILM is its flexibility. It can be easily cut, bent, and shaped to fit different devices and surfaces, making it an ideal choice for various applications. The film is also highly durable and can withstand harsh environments, making it suitable for long-term use.
The high adhesion of Prochema ITO PET FILM makes it easy to stick onto different surfaces, ensuring a secure and long-lasting bond. This feature is particularly essential for applications that involve constant movement or require the film to stay in place.
One of the most popular applications of Prochema ITO PET FILM is in RFID blocking on smart coolers. The film is used to create a conductive barrier that blocks signals from RFID (radio-frequency identification) devices, preventing unauthorized access to sensitive information or products. This application is widely used in retail stores, supermarkets, and other commercial establishments.
The haze of Prochema ITO PET FILM is less than 2%, ensuring that the film does not affect the clarity of displays or images. This makes it an ideal choice for touch screens and other devices that require high-definition visuals.
In conclusion, Prochema ITO PET FILM is a highly versatile and reliable product that is widely used in various industries. Its excellent conductivity, flexibility, durability, and high adhesion make it the perfect choice for applications that require a conductive film. With its wide range of applications, Prochema ITO PET FILM is a must-have for any electronic device manufacturer or retailer.
1.What with can be supplied?
== For 3.5 ohm/sq ITO Film, our max width is 1220mm
2.What else low resistance can be supplied?
==Including 3.5 ohm, we also have 5-7 ohm, 8-10 ohm, 15-17 ohm and above
3.Regular thickness
==125 microns
4.Customization
==We provide customized width slitting, adhesive coating, diecut etc
