Product Description:
Conductive Film - ITO PET FILM With OCA
Conductive Film is a specialized film that is used to provide EMI shielding and RFID blocking on smart coolers. It is made from ITO PET FILM with OCA, which makes it highly conductive and effective in reducing electromagnetic interference.
EMI Shielding: >30 DB
With a high EMI shielding capacity of over 30 DB, this conductive film is suitable for various electronic devices that require protection from electromagnetic interference.
Usage: RFID Block On Smart Cooler
The primary usage of this conductive film is to provide RFID blocking on smart coolers. It effectively blocks any signals from RFID readers, ensuring the security of the contents in the cooler.
Haze: <2%
The haze level of this conductive film is kept below 2%, ensuring clear visibility of the contents inside the cooler. This makes it ideal for use in retail and commercial settings.
Feature: Super Low Resistance 3.5 Ohm/sq
One of the key features of this conductive film is its super low resistance of 3.5 ohm/sq. This allows for efficient and reliable conductivity, ensuring optimal performance of the film in shielding and blocking applications.
Vlt: >76%
The Vlt (Visible Light Transmission) of this conductive film is above 76%, which means that it allows for good visibility of the contents inside the cooler. This makes it suitable for use in display coolers that require both EMI shielding and clear visibility.
ITO PET FILM With OCA
This conductive film is made from ITO PET FILM with OCA, which is a highly conductive and durable material. The combination of ITO PET FILM and OCA ensures the film's effectiveness in providing EMI shielding and RFID blocking.
3-5 ohm ITO PET FILM
The conductive film has a resistance of 3-5 ohm, making it highly conductive and suitable for various electronic applications. The ITO PET FILM used in this product is known for its excellent conductivity and durability.
3-5 ohm ITO PET FILM with OCA
The addition of OCA to the ITO PET FILM further enhances its conductivity and durability, making it an ideal choice for EMI shielding and RFID blocking. The 3-5 ohm resistance of the film ensures efficient and reliable performance.
Features:
- Product Name: conductive film
- EMI Shielding: >30 DB
- Usage: RFID Block On Smart Cooler
- Adhesion: AB Adhesive Easy Stick
- Model: ITO FILM JL-125-3AD
- Feature: Super Low Resistance 3.5 Ohm/sq
- 0.125MM Low Resistance ITO Film
- 3-5 ohm ITO PET FILM
- ITO PET FILM With OCA Glue
Technical Parameters:
| Parameter |
Value |
| Haze |
<2% |
| Feature |
Super Low Resistance 3.5 Ohm/sq |
| Vlt |
>76% |
| Model |
ITO FILM JL-125-3AD |
| Usage |
RFID Block On Smart Cooler |
| Adhesion |
AB Adhesive Easy Stick |
| Surface |
Low Resistance ITO Sputtered |
| Base Material |
Optical PET Film |
| EMI Shielding |
>30 DB |
| Key Features |
ITO PET FILM With OCA, ITO PET FILM With OCA, LCD Display EMI ITO FILM |
| Technology |
ITO Sputtering |
| Substrate |
Optical PET Film |
| Resistance |
3.5 Ohm/sq |
| Haze |
<2% |
| Vlt |
>76% |
| Adhesion |
AB Adhesive Easy Stick |
| EMI Shielding |
>30 DB |
| Item |
Unit |
Test Method |
Value |
Result |
| |
SN |
PET Thickness |
um |
|
125±5 |
126 |
| ITO PET |
1 |
Total Transmittance |
﹪ |
ASTM D1003 |
≥70 |
73 |
| 2 |
Haze |
﹪ |
ASTM D1003 |
3±0.5 |
2.5 |
| 3 |
Sq.Resistance |
Ohm/sq |
ASTM D991 |
3~5 |
3.5 |
| 4 |
Resistance Tolerance |
﹪ |
ASTM D991 |
≤15 |
≤10 |
| 5 |
ITO peel strength |
B |
ASTM D3359 |
≥5B |
5B |
| 6 |
Heat stablization |
MD |
﹪ |
ASTM D1204 at 120℃ *30min |
≤1 |
≤0.58 |
| TD |
﹪ |
≤1.5 |
≤1 |
| |
7 |
Annealing |
R/Ro |
% |
60min at 140℃ |
0.8≤R/Ro≤1.2 |
0.8 |
| EMI |
30M |
100M |
300M |
600M |
900M |
1200M |
1500 |
| |
28.6dB |
28dB |
28.5dB |
28dB |
30.5dB |
26.8dB |
30.4dB |
Applications:
Prochema ITO PET Film is a high-quality conductive film that is widely used in the electronics industry. With a brand name of Prochema ITO PET Film and model number of 3-5 Ohm ITO PET Film, this product is one of the best choices for customers looking for a reliable and efficient conductive film. Made in China, this product has a minimum order quantity of 5 square meters and a price of 98 USD. It comes in roll form, wrapped with foam protection for safe transportation and delivery. The delivery time for this product is just one week, and payment can be made through T/T in advance. With a supply ability of 2000 square meters per month, customers can rely on this product for their production needs.
Product Details:
Brand Name: Prochema ITO PET FILM
Model Number: 3-5 Ohm ITO PET FILM
Place of Origin: China
Minimum Order Quantity: 5 sqm
Price: 98 USD

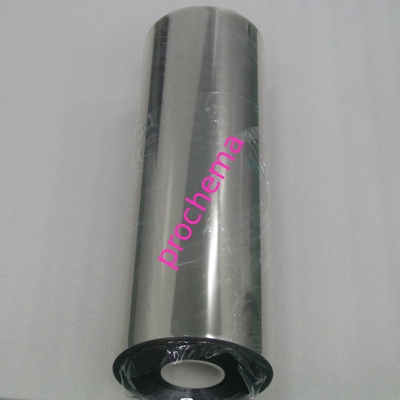

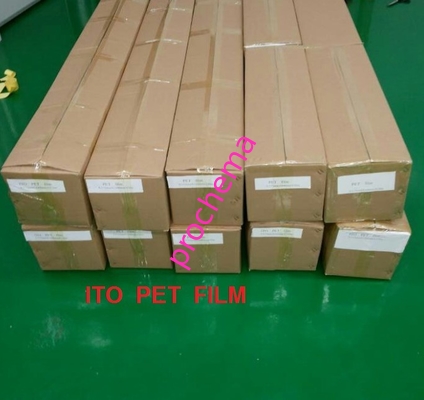

Packaging Details: In roll wrapped with foam protection
Delivery Time: 1 week
Payment Terms: T/T in advance
Supply Ability: 2000 sqm/month
Haze: <2%
Surface: Low Resistance ITO Sputtered
Base Material: Optical PET Film
Feature: Super Low Resistance 3.5 Ohm/sq
Model: ITO FILM JL-125-3AD
Product Features:
- ITO PET FILM With OCA for easy application
- 3-5 ohm ITO PET FILM for efficient conductivity
- 0.125MM Low Resistance ITO Film for thin and lightweight design
- Optical PET Film for high transparency and clarity
- Super Low Resistance for improved performance
- Conductive Film for various electronic applications
- Touch Screen for smooth and responsive touch experience
- Flexible Display for versatile use in different devices
- Transparent Electrode for a sleek and modern design
- Electronic Components for reliable and stable performance
- LCD, OLED, Smartphones, Tablets, Laptops, Wearable Devices, Automotive Displays, Medical Devices, and more
Product Application Scenarios:
Prochema ITO PET Film is an essential component in the production of various electronic devices. It is commonly used in the following scenarios:
- Touch screens for smartphones, tablets, and laptops
- Flexible displays for wearable devices and automotive displays
- Transparent electrodes for LCD and OLED screens
- Electronic components for stable and reliable performance
- Medical devices for precise and accurate readings
With its super low resistance of 3.5 ohms per square, this conductive film ensures efficient and reliable conductivity for these devices, resulting in smooth touch experience, high image quality, and overall improved performance.
