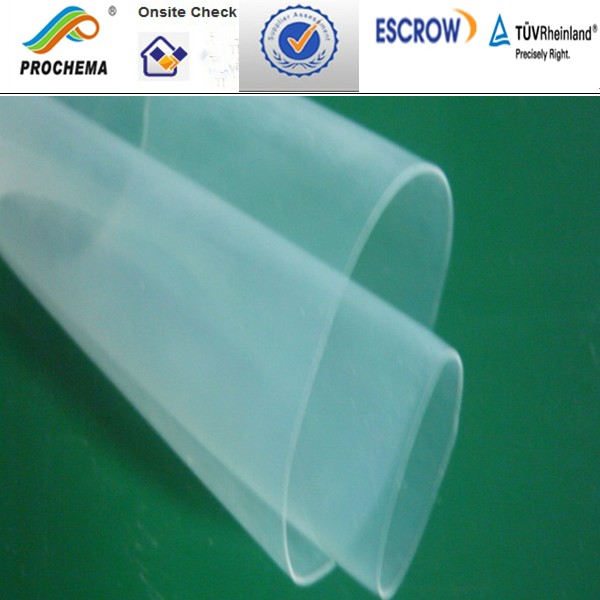

FEP transparent tube, FEP heat shrinkable tube

FEP special shape tube

Introduction:

FEP tube is made from FEP resin and prepared by the technology of thermoplastic extrusion and blowing. It has non-sticking, heat-resistance, aging resistance, corrosive resistance, non-flammability and good electric property. It can be solid adhesive for PTFE and also a good adhesive for

laminating various materials. Its working temperature is up to 200 and is an ideal material for circuit board

and flat cable.

Usage :

Office-work machine 's roll packing
paper machine's roll packing

Printing and dyeing machine's roll packing
printing machine roll packing
insulated jacket

the main insulation of rotor of the electric instrument

water treatment

make the magma sample in the field of oil field ect.

UV lamp protecting

FEP & PFA has perfect anticorrosive properties and heat resistance and electric resistance. they are widely used in the fields of electrical,petrochemical,industrial,IT industrial.They are the perfect material so making VU lamp protection tube, anticorrosice tube

FEP is both transparent to UV-A and UV-C light and totally resistant to it as well as being temperature resistant. Therefore ,it makes an excellent material for shatter proofing UV lamps used in the food industry where glass free areas are required. Other plastic voerings enbrittle or discolour under the effect of the UV radiation . If the lamp suffers damage ,the glass is contained in teh shrunk on jacket.

Linear Lamps of any Size.

Fitted boots for U shaped lampes.

Properties :

High low temperature resistance: -200--200oC,high temperature strength is 2 times higher than PTFEGood adhesive and heat sealability with PTFE:

Below melting point ,it won't stick any project.Above melting point, it has perfect adhesive

property with PTFE, Metal and self-adhesion(heat sealing).

None stick to water ,oil : water contact angle: =1150

Electric reliability,High dielectric 60HZ-60MHZ , Under the high and low temperature,the permittivity keeps 2.1 even if the surface

damaged ,it won't has conductive track.

Volume resistance>1018ohmSurface resistance>2*1013ohm

Voltaic Arc Resistance >165s No electric leakage Weather resistance: It can be used in sunlight and ozone long Anti-corrosion :Only in high temperature, Fluorin and alkalis can effect it,others acid,

alkali or ester won't effect it.

Fireproof : If firing, and will still insulate .

High diaphaneity

UL-Resistance : Good penetrability in ultraviolet radiation,and lowest refraction coefficient

Technical index of FEP:

Item

Value

General purpose

Electric purpose

Density g/cm3

2.12-2.17

2.12-2.17

Temperature range oC

-200 -+200

-200 -+200

Longi&tray,shrink rate % <=

3.0

3.0

Tensile strength Mpa >=

14

14

Elongation at break % <=

175

175

Tear Strength (N/m) >=

4.9x104

4.9x104

Dielectric Constanct (106Hz)

2.15

Dissipation Factor 106Hz <=

1x10-3

Volume resistance (ohm.m)

1x1014

Dielectric Strength TH <= 0.05mm

Th 0.05-0.1mm

M/V TH >= 0.1mm

100

75

50

Specification :

Dia ø1.5 --300mm, Thickness: 0.015mm to 0.75mm. Length :50mm to unlimited.

For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm .

Color and sizes can be customiszed .

We can also offer you FEP coil pipe, FEP bellows,FEP rotary cutting tube, FEP square tube, FEP rectangle tube, FEP end-sealing tube .

For quotation, please kindly contact us with below detail information to speed up our service:

1.Thickness

2.ID and OD (post-shrink ID and thickness)

3.colorful or transparent

4.Quantity

Once we get your detail inquiry,we will reply you in 10 hours.

Wish you good business.

Contact:

Mr. Michael zhang Skype:michaelprochema Google talk:zch5584 at gmail.com

Ali trademanager:cn200020719 QQ:676245587

Special shape FEP/PFA tubes as following ,all can customized.
